Description

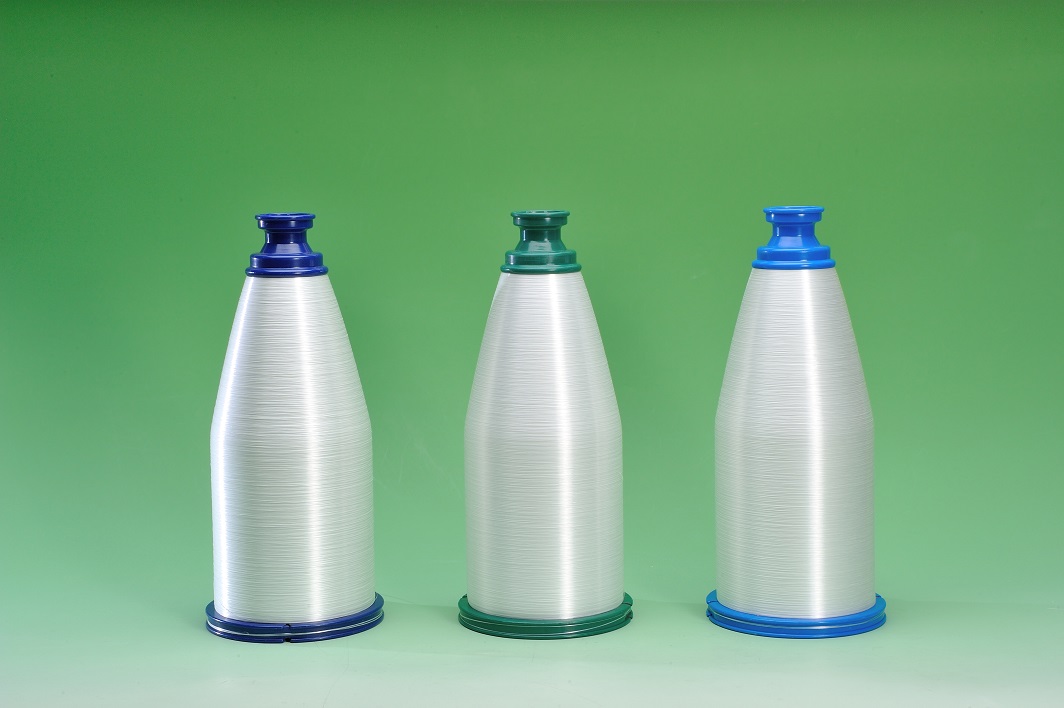

PFG Electronic Fiber Glass Yarns are produced by twisting several  hundred filaments of approximately 9.0 microns in diameter


Product Specifications

SPEC
ITEM
G37
G67
G75
G150
Yarn Count, Tex(g/1000m)
137.4±4.5
74.0±1.5
68.7±1.5
33.7±1.2
Filament Diameter (μm)
9.0
9.0
9.0
9.0
Filament Count
800
400
400
200
Type of Binder
Starch
Starch
Starch
Starch
Loss on Ignition
1.00±0.20
1.15±0.15
1.15±0.15
1.00±0.20
Max, Moisture Content (%)
0.2
0.2
0.2
0.2
Twist(tpm)
40.0±4.0(1.0Z)
28.0±2.8(0.7Z)
28.0±2.8 (0.7Z)
28.0±2.8(0.7Z)
Min. Tensile Strength (g/tex)
50
50
50
52
Weight of Full Bobbin(kg/pc)
8.6
8.3
8.5
3.2
Min. Length of Full Bobbin (m/pc)
62,800
113,200
124,400
95,000
QTY (pc/box)
60
60
60
117
  • All products in this catalogue comply with EU RoHS and REACH regulations.
  • Additional yarn count, twist, binder spec. or usage are available upon request.
Characteristic
  • Outstanding electric insulation properties, suitable for the base material of information and electronic industries.
  • High tensile strength ＆ good dimensional stability.
  • High heat, Chemical and flame resistance.




Application

Electronic-Grade Glass Fabric for PCB：

It’s main applications include  personal computers and peripheral equipment、LED-TVs、telecommunications、base station servo devices 、digital equipments and automobile panels, etc.





（PFG, Jul 18, 2022）

Products



The empty bobbin must be returned to PFG for recycling purposes.
