Description

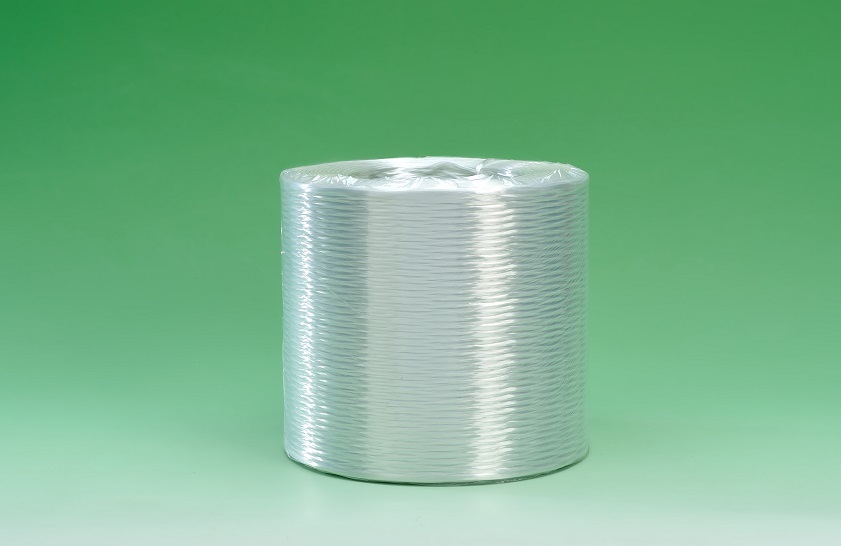

Providing the use of the tex yarn thread density, such as 1200,2400 and 4400tex, single fiber diameter of 17 ~ 24μm.


Product Specifications

SPEC
ITEM
HYBON 2002
(1200 TEX)
HYBON 2002
(2400 TEX)
HYBON 2002
(4400 TEX)
Nominal Fiber Diameter (μm)
17
17
24
Type of Binder
Silane
Silane
Silane
Loss on Ignition (%)
0.55 ± 0.15
0.55 ± 0.15
0.55 ± 0.15
Max, Moisture Content (%)
0.07 Max.
0.07 Max.
0.07 Max.
Yarn Count, Tex (g/1000m)
1200 ± 84
2400 ± 120
4400 ± 308
packages/pallet
48
48
48
Package WT. (kg/pc)
A1
20.0 ± 1.0
20.0 ± 1.0
20.0 ± 1.0
A2
6.80 Min.
6.80 Min.
6.80 Min.
Compatible With Resins
Polyester、Vinyl ester、Epoxy
Application
Wind blades, electrical insulation materials.
  • The products to the RoHS request.
Characteristic
  • Excellent processing characteristics, processing is not easy to fluff and broken wire.
  • Compatible with polyester resin, vinyl resin, phenolic resin and epoxy resin substrate.
  • Rapid impregnation in thermosetting resins.
Application

Winding processing, pultrusion processing and multi-axial weaving, such as the use of wind blades, electrical insulation materials and sports equipment.

（PFG, Jul 18, 2022）

Products



The empty bobbin must be returned to PFG for recycling purposes.
